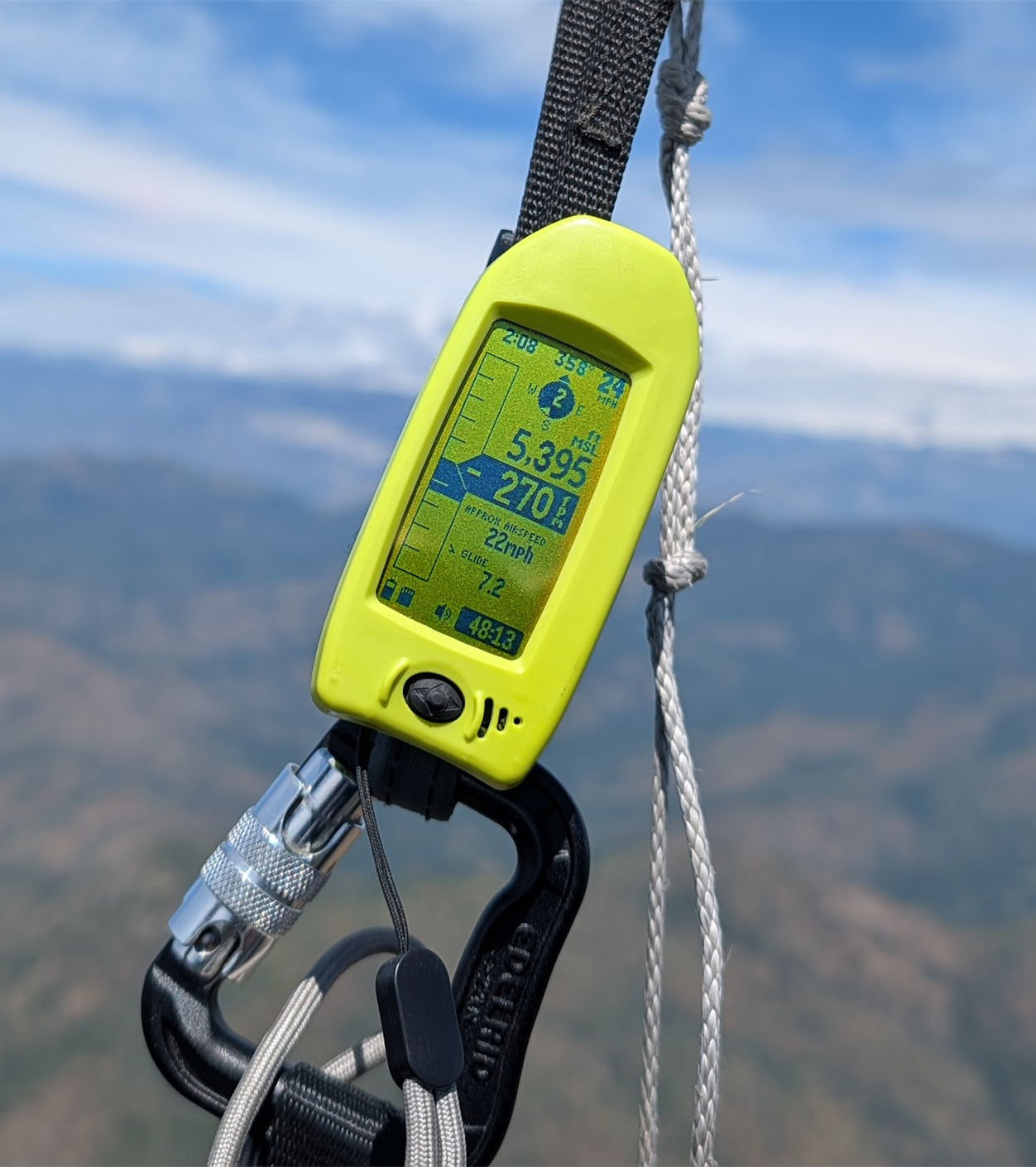

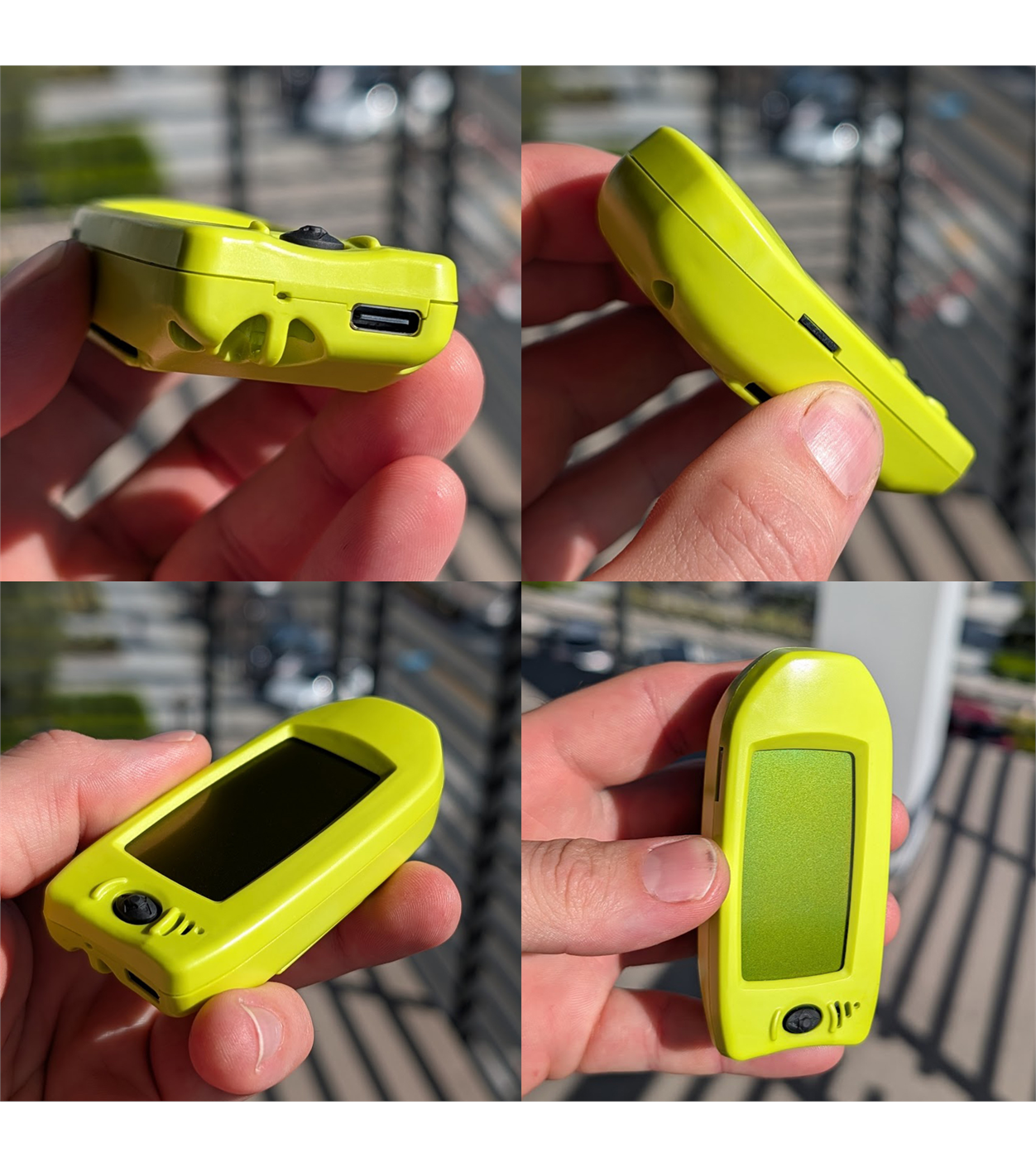

Leaf is a powerful flight computer in a tiny package – small enough to strap to a riser, but crammed full of capability.

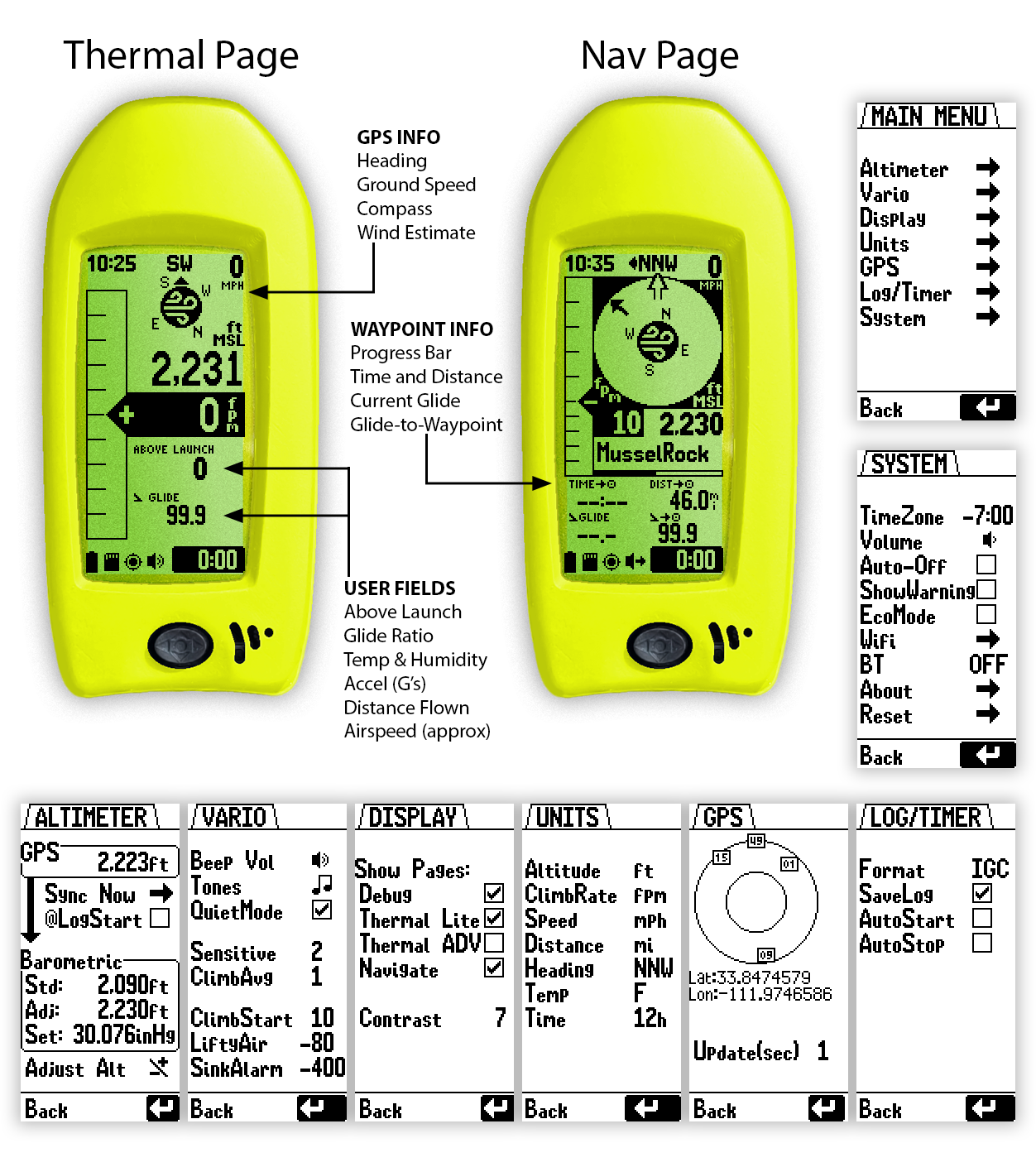

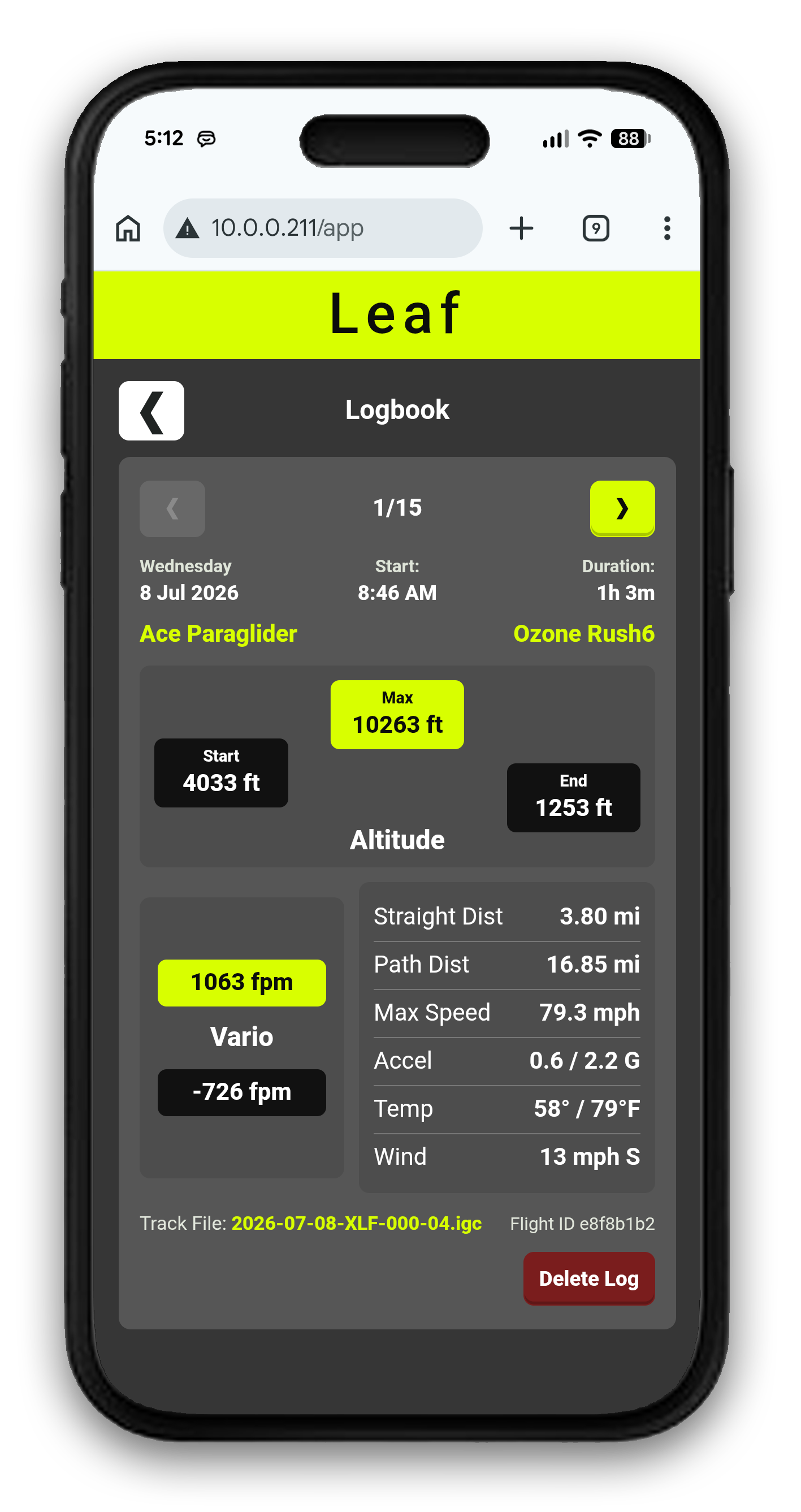

All valuable flight information is shown on screen, and behind the scenes Leaf will log your data and flight tracks to the SD card in KML and IGC format.
While Leaf is a complete flight computer package, you can also pair to other devices with Bluetooth and WiFi to expand even further.

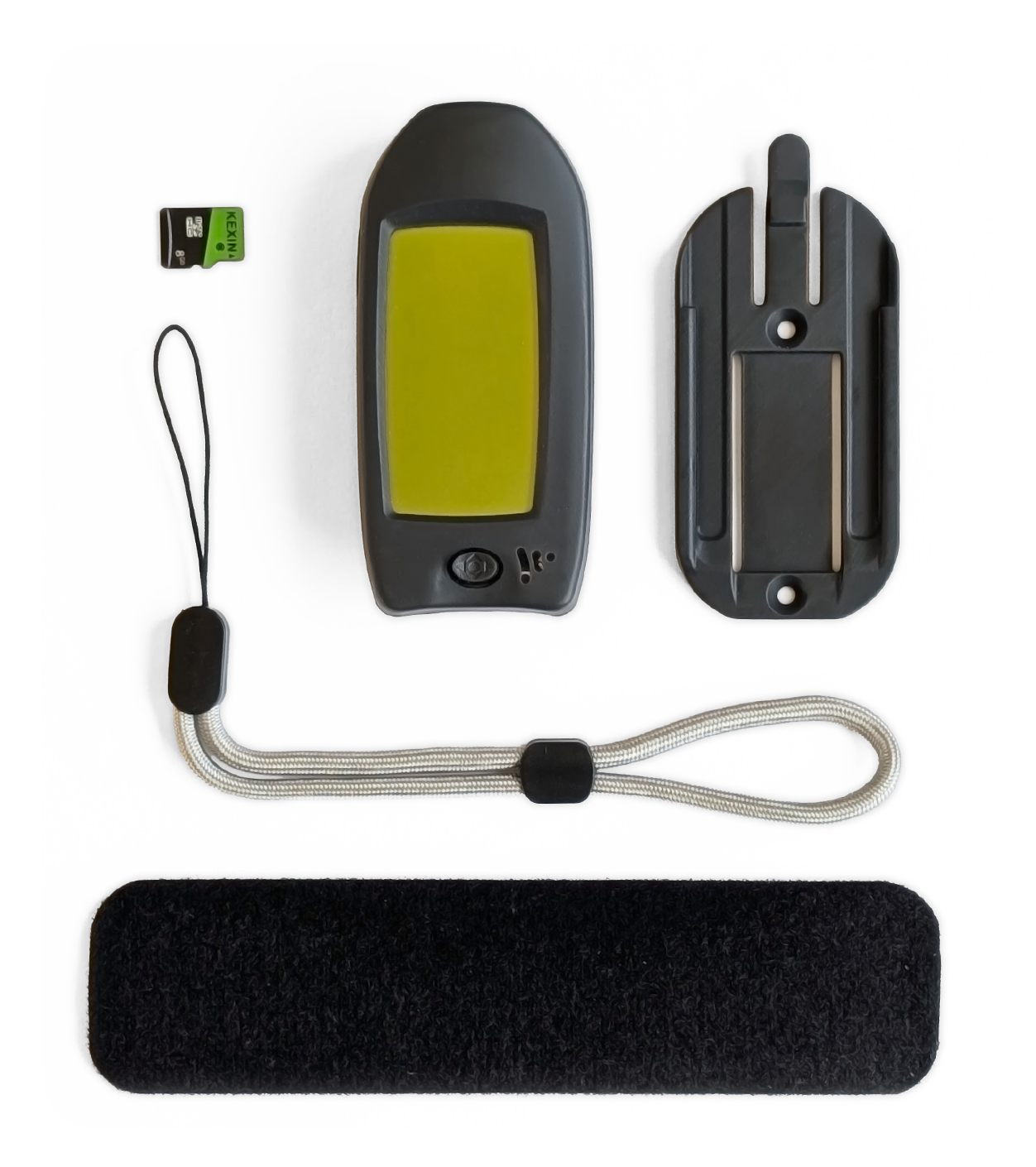

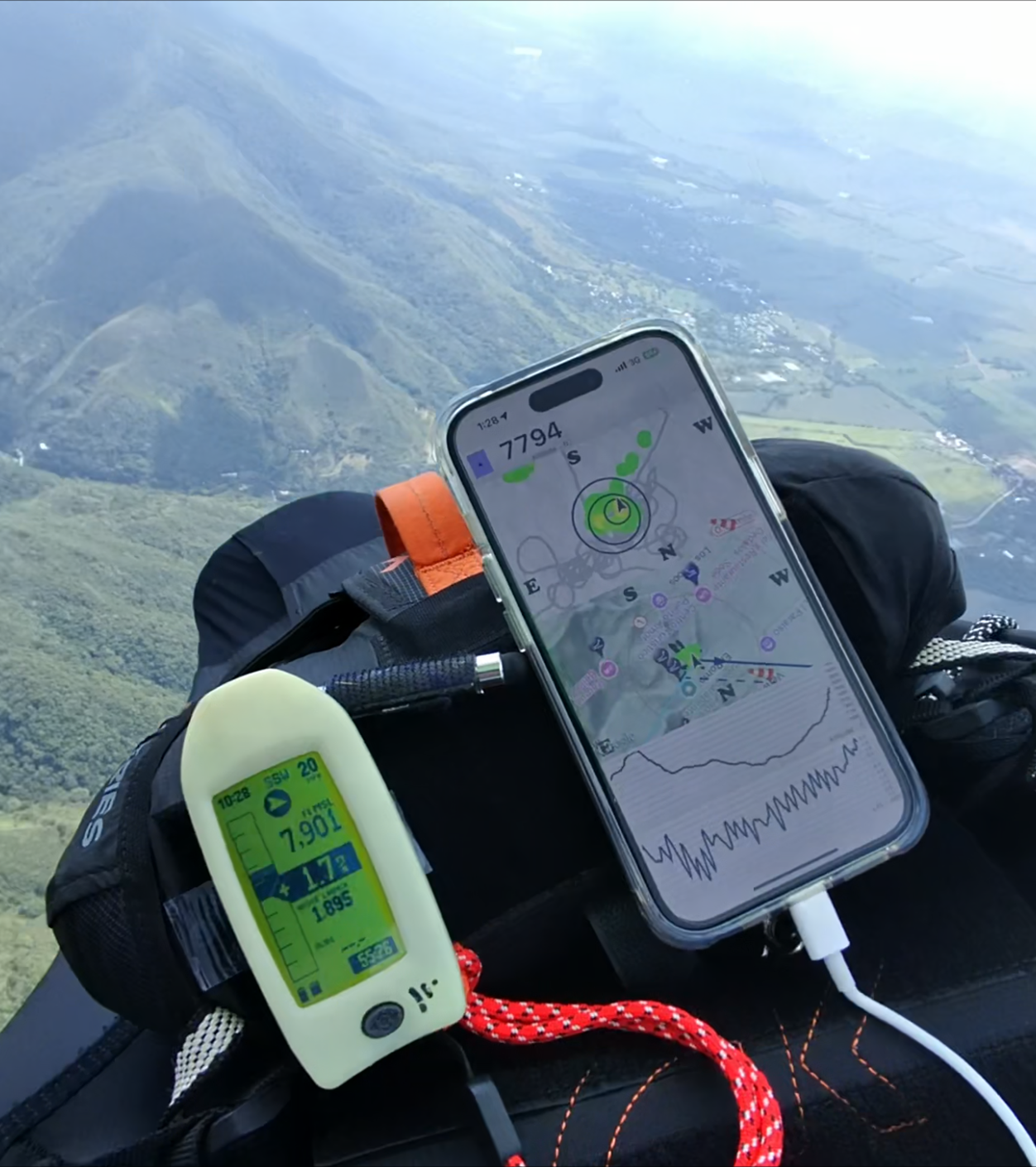

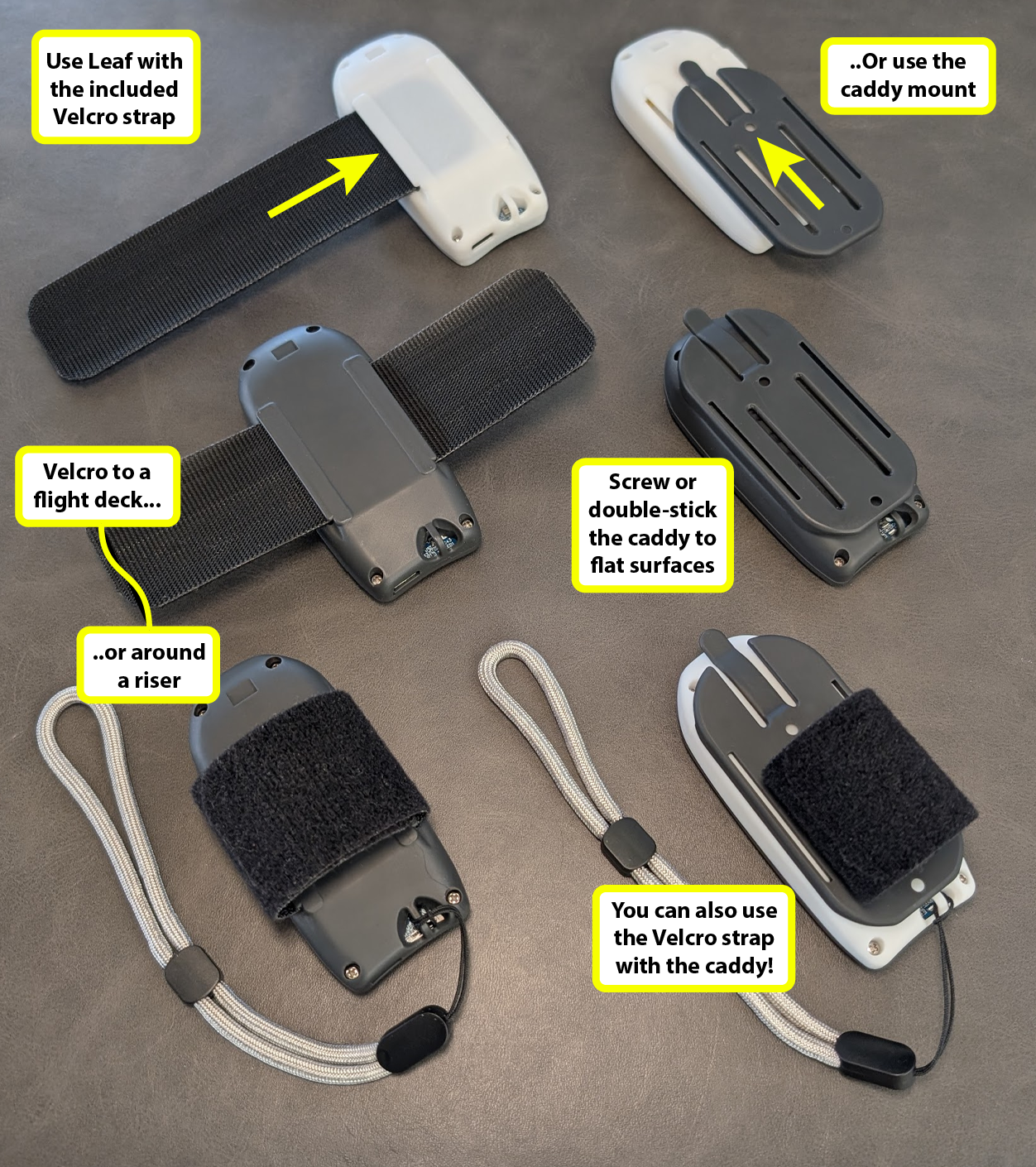

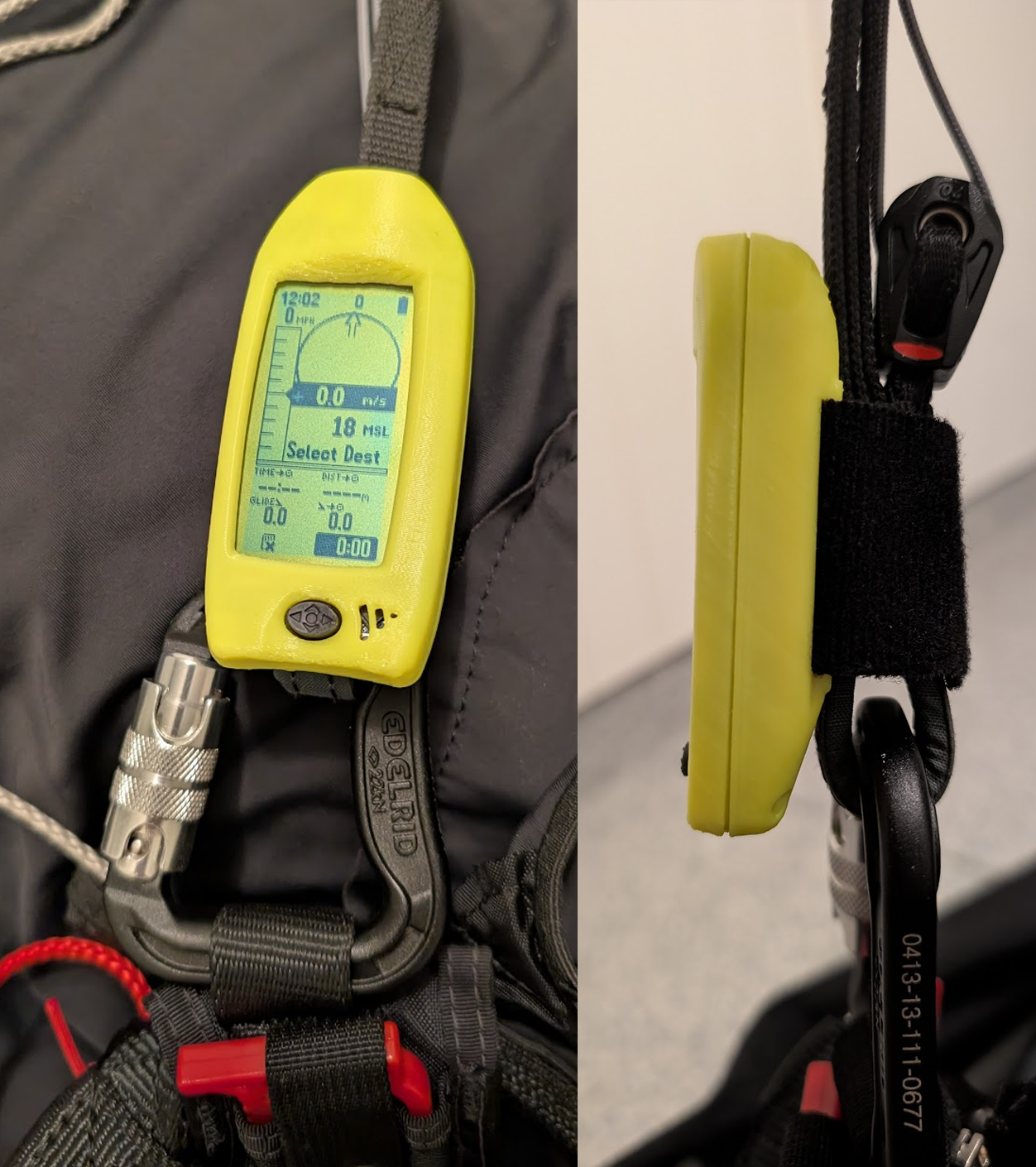

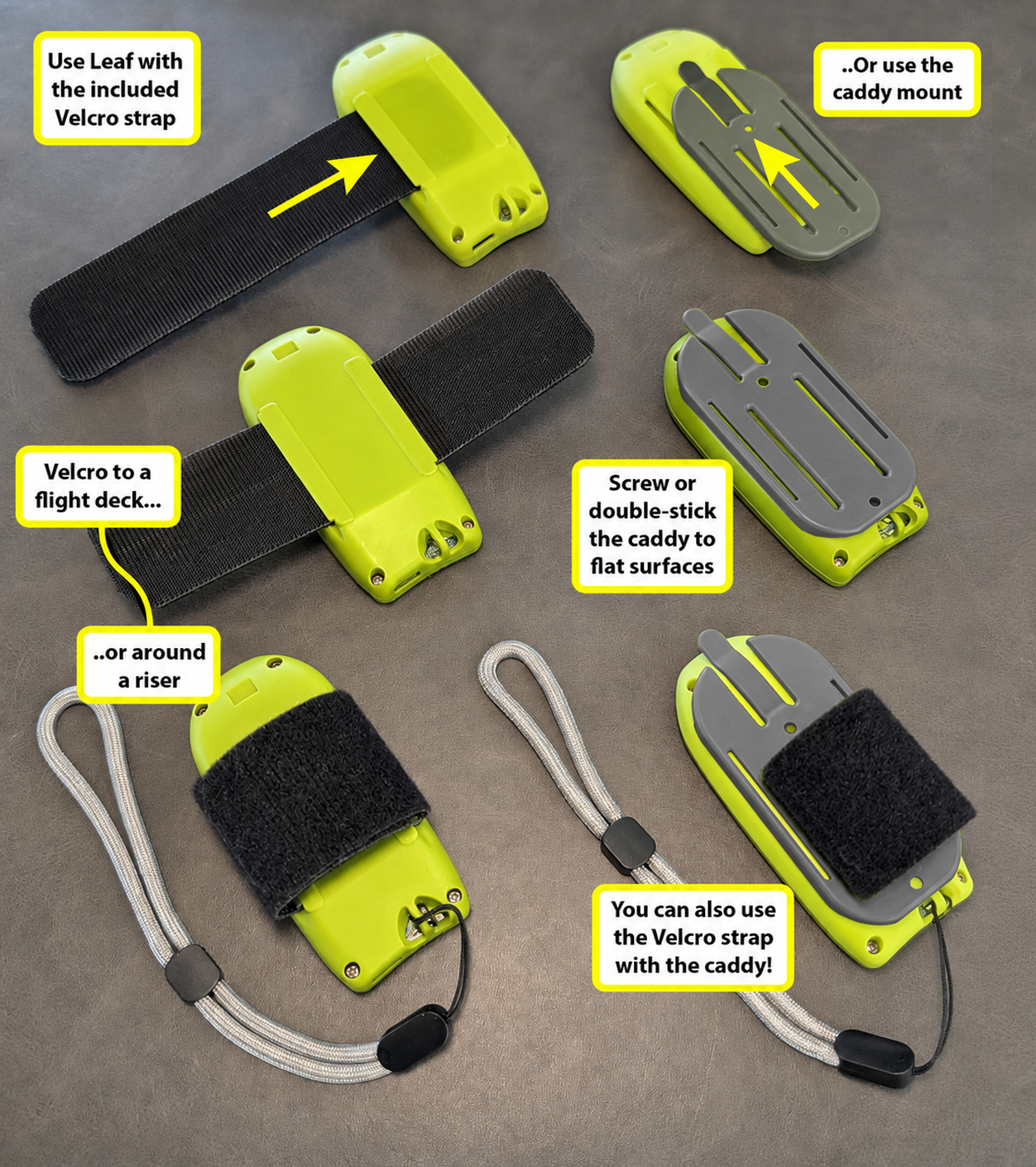

Leaf is designed to mount anywhere: attach to a riser or harness strap, mount to a flight deck, or use the included snap-in base plate for even more mounting options (velcro strap and safety lanyard included).
Best of all, Leaf is Open Source, and will be constantly improving with community input and feedback. Feel free to share your ideas!
- High sensitivity barometric pressure sensor for precise climb rate and altitude. Also includes ambient temperature and humidity
- High contrast LCD display for easy outdoor viewing, even in direct sunlight. 192x96 pixel resolution. Screen will work even with polarized sunglasses!
- GPS with WAAS/SBAS and multi-constellation support for precise 3D location around the world
- Track every movement with the 9-axis IMU (accelerometer, gyro, and compass)
- SD Card for saving data and logs. 8GB card included!
- Pair with other devices or your mobile phone via Bluetooth
- Connect to WiFi networks for easy firmware updates
- 20 hour battery life and powerful 32-bit 240MHz processor

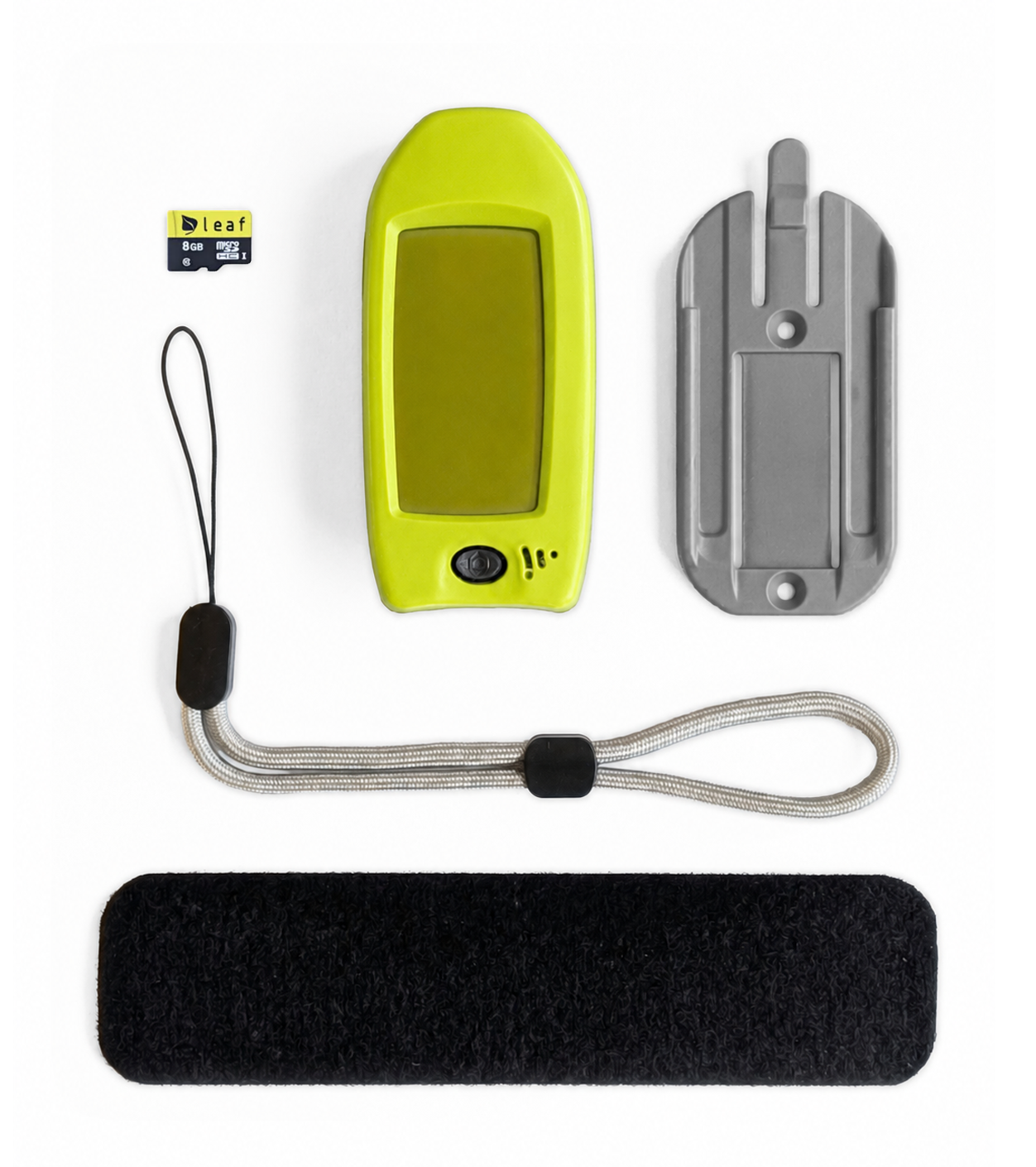

- Velcro strap, safety lanyard, and snap-in base plate provide plenty of mounting options
- 100% Open Source hardware and software
